Press Filter Belt (Dewatering Belt)
Woven and spiral-link dewatering belts for belt press filters — gravity drainage, wedge and high-pressure pressing zones, with reinforced seams and custom lengths.
Aurora PB dewatering belts run on belt press filters through gravity drainage, wedge and high-pressure pressing zones. We offer both woven press fabrics and spiral-link press belts (see our spiral press filter belt page) with reinforced seams, and select permeability per zone — coarser for gravity drainage, tighter for pressing.
The belts — woven constructions
Four platform weaves cover the permeability range from gravity drainage to the high-pressure zone — measured, not guessed:
On the machine

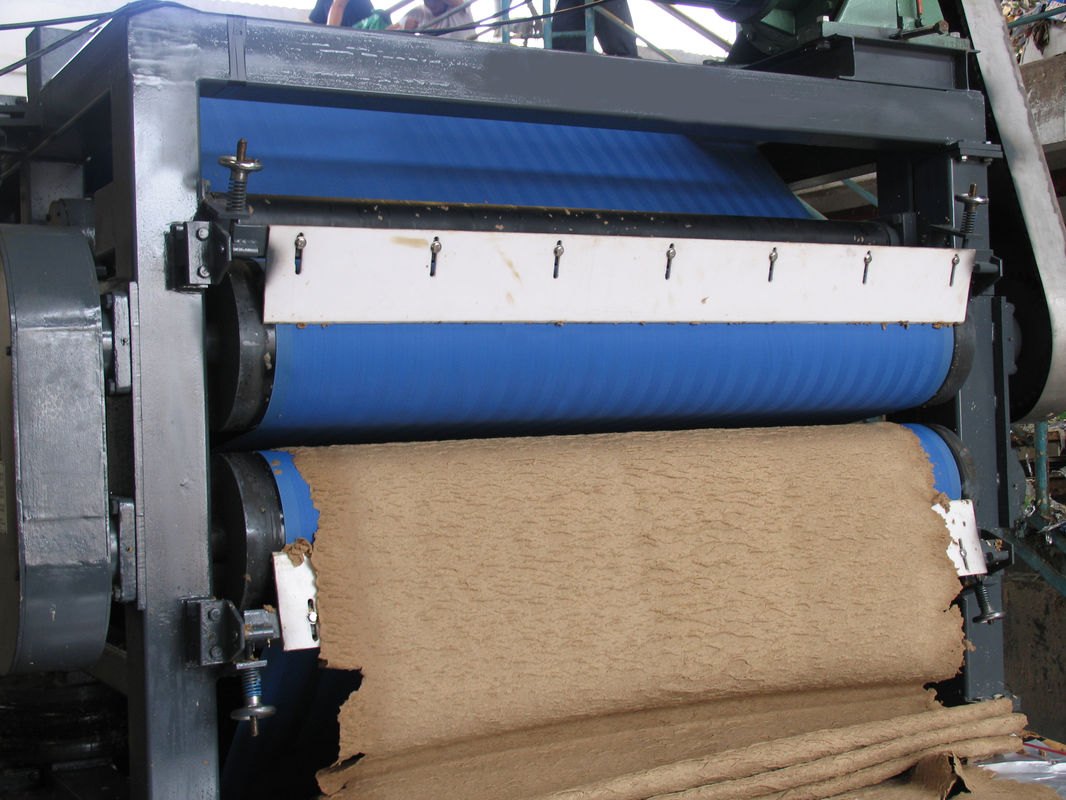

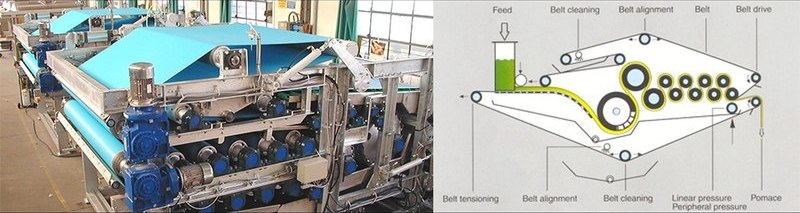

Belt press in operation
The belts run the full cycle: free water drains in the gravity zone, the wedge squeezes the remaining liquor out, and the press rollers finish the job — permeability and seam strength are selected per zone.

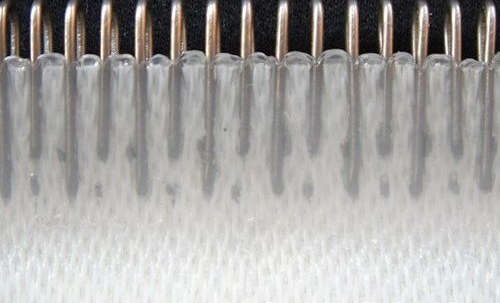

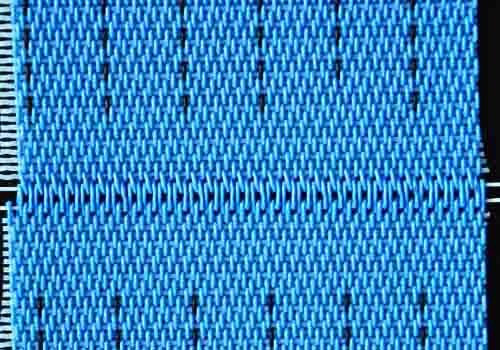

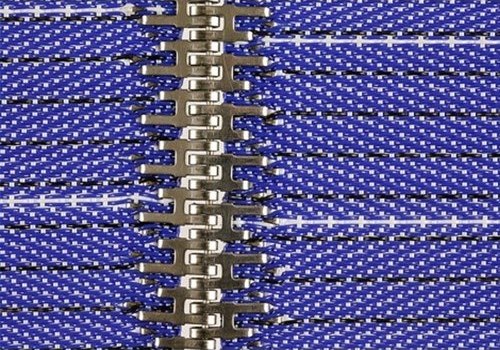

Joints — reinforced for the press
Splice joints are the first thing a belt press punishes, so ours are reinforced and matched to the machine:
Specifications — factory test data
| Model | Warp yarn (mm) | Weft yarn (mm) | Warp/Weft dens. (/cm) | Weave | Air perm. (CFM) | Thickness (mm) | Weight (g/m²) | Tensile (N/cm) |
|---|---|---|---|---|---|---|---|---|
| 601 | PET 0.68 white | PET 0.9 white | 16 / 5 | 2/1 twill | 433 | 2.02 | 1476 | 1366 |
| 603 | PET 0.5 white | PET 0.8 white | 24 / 7.3 | 6/2 satin | 478 | 1.85 | 1310 | 1282 |
| 604 | PET 0.5 white | PET 0.7 white | 24 / 9 | 6/2 satin | 341 | 1.80 | 1280 | 1306 |

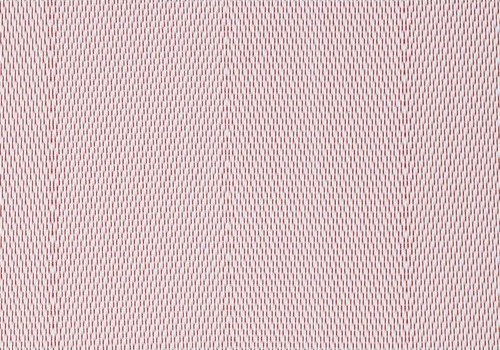

| 608 | PET 0.65 white | PET 1.0 red | 18 / 5.5 | 3/2 satin | 510 | 2.23 | 1588 | 1786 |

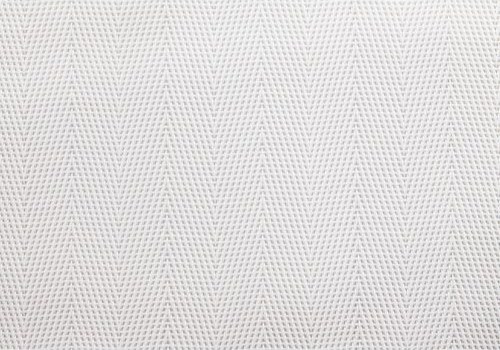

| 613 | PET 0.7 white | PET 0.9 white | 16 / 4.5 | 2/2 twill | 633 | 2.20 | 1405 | 1604 |

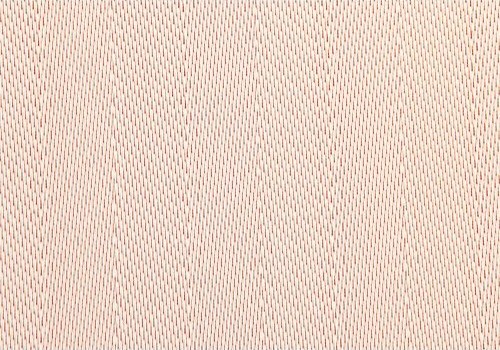

| 626 | PET 0.5 white | PET 1.0 red | 24 / 6.7 | 6/2 satin | 457 | 2.15 | 1657 | 1370 |
| 701 | PA 0.5 | PA 0.95 | 25 / 6.5 | 3/2 satin | 360 | 2.05 | 1428 | 1356 |
Belt life is measured in pressed hours: reinforced seams and zone-matched permeability cut belt changes — and every avoided change is a full shift of press time you keep.
Machine & platform fit
Belt press filters (2-belt and 3-belt designs) · Gravity / wedge / pressing zone replacements
Frequently Asked Questions
What is a dewatering belt?
A dewatering belt is the press filter belt that runs on a belt press filter: it drains water through its openings while withstanding high squeeze pressure between the press rollers.
Which belt permeability do I need?
Coarser, more permeable belts suit the gravity drainage zone; tighter weaves suit the high-pressure pressing zone. We select permeability per press zone and material.
Are reinforced seams available?
Yes — reinforced seams extend belt life under high squeeze pressure; stainless steel clipper seams are available on request.
Spiral or woven belt — which one?

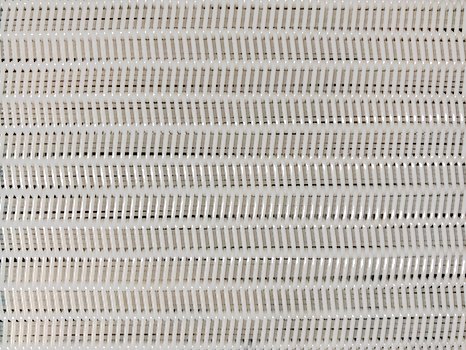

Spiral belts (with filler yarns) resist heavy squeeze and release cakes well; woven belts give a smoother surface and finer retention. See our spiral press filter belt page for the spiral option.
Do you supply food-juice pressing belts?
Yes — food-grade PET weaves for juice and fruit squeezing presses, with endless or pin seams.
Request a quote for press belts
Press model + slurry + belt width = quotation within 24 hours.
